Ebac CD200-D Commercial Dehumidifier – 138 PPD HVAC Unit
$6,650.45
The Ebac CD200-D is a high-capacity commercial dehumidifier designed for HVAC applications in medium to large spaces. With 138 PPD extraction capacity and reverse cycle defrost, this unit delivers reliable moisture control in warehouses, factories, and commercial facilities operating down to 33°F.
Ebac CD200-D Commercial Dehumi...
$6,650.45
Need Help?
(+123) 666 202 888

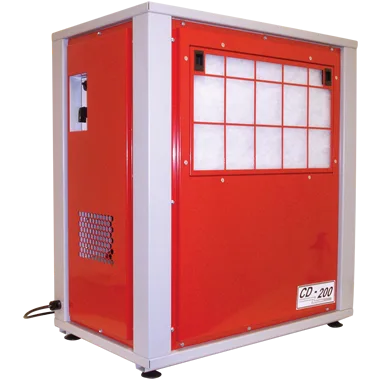

Ebac CD200-D Commercial Dehumidifier
The Ebac CD200-D is a professional-grade HVAC dehumidifier engineered for medium to large commercial spaces requiring reliable humidity control. This self-contained unit features an integral condensate pump, adjustable digital humidistat, and temperature-sensitive reverse cycle defrost for effective operation in ambient temperatures as low as 33°F.
Key Features
- 138 PPD typical extraction capacity for high-volume moisture removal
- Adjustable digital humidistat maintains optimal dryness levels
- Integral condensate pump with high-capacity pumping height
- Temperature-sensitive reverse cycle defrost for low-temperature operation
- Quiet 2-speed centrifugal fan (585-664 CFM)
- Self-contained design for quick installation without ductwork
- Optional ducting capability for custom applications
- Remote humidistat facility for flexible placement
- Heavy-gauge steel construction with epoxy powder coating
- Adjustable feet for easy installation and leveling
Technical Specifications
| Specification | Value |
|---|---|
| Model | CD200-D |
| Part Number | 11182GR-US |
| Typical Extraction | 138 PPD |
| Effective Volume | 600 m³ |
| Voltage | 220V / 1 Phase / 60 Hz |
| Current | 10.6 A |
| Power | 2.25 kW |
| Airflow (Low Speed) | 585 CFM |
| Airflow (High Speed) | 664 CFM |
| Noise Level | 73 dBA |
| Operating Temperature Range | 33°F to 95°F |
| Compressor Type | Reciprocating |
| Fan Type | Centrifugal |
| Fan Speeds | 2 |
| Dimensions (H x W x D) | 32.7″ x 29.5″ x 17.5″ |
| Weight | 176 lbs |
Applications
The CD200-D dehumidifier is ideal for warehouses, factories, offices, and other medium-scale commercial facilities. Its robust construction and temperature-sensitive defrost system enable operation in challenging environments where ambient temperatures may drop to 33°F. The unit can be deployed individually or in multiples to provide comprehensive humidity protection at any scale.
Advanced Features
This dehumidifier incorporates electronic defrost control with Ebac’s temperature-sensitive reverse cycle defrosting technology, which automatically melts frost buildup to maintain optimum performance across varying temperature conditions. The twin-speed centrifugal fan maximizes air delivery over longer distances while maintaining relatively quiet operation at 73 dBA. Under maximum conditions, the CD200-D can remove up to 190 PPD, making it suitable for demanding commercial applications.
